Knowledge Base Integration with IT services (LDAP and SMTP) TrueConf Server administration

How to manage TrueConf plugin for Microsoft Outlook in a centralized way

Danila Gaidenko

October 31, 2024

5 min.

There is a centralized method for managing TrueConf for Outlook plugin: it is possible to edit the configuration file config.json on the server side.

To make use of this feature, you need to have the plugins of the following versions:

TrueConf for Outlook desktop version 1.2.0.47 or above;
TrueConf for Outlook web version 1.2.0.41 or above.

Configuration file setup

To ensure that all subsequent changes to the file are saved, it must be opened with administrator rights (for Windows) or superuser rights (for Linux).

The config.json file for the desktop version is stored at the path:

C:\Program Files\TrueConf Server\httpconf\site\public\plugins\outlook-desktop\ – Windows;
/opt/trueconf/server/srv/site/public/plugins/outlook-desktop/ – Linux.

The config.json file for the desktop version is stored at the path:

C:\Program Files\TrueConf Server\httpconf\site\public\plugins\outlook-web\ – Windows;
/opt/trueconf/server/srv/site/public/plugins/outlook-web/
– Linux.

Each configuration file has 3 sections:

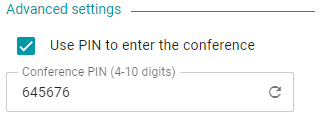

defaults – here, one can set the parameters that will be used by default. For example, you can set "pin": 1, now when creating a conference, the box “use PIN to enter the conference” will be enabled by default, but it can be disabled.

All parameters in this section take individual values specified in the table.

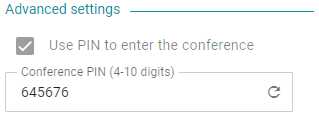

lock – here you can set the parameters that will be “locked” (cannot be changed). For example, you can set "pin": true, and in this case, the user will see that PIN is mandatory and this requirement cannot be disabled.

All parameters in this section can be set to either false or true.

hidden – this section is needed for hiding parameters. For example, if you set the parameter “pin”: true, the user will not see this parameter when creating a conference.

All parameters in this section can be set either to false or true.

You don’t have to use any unnecessary parameters; if any of the parameters are skipped, the TrueConf plugin will take default values.

Available options

Below you can find the list of all the parameters available in the plugin. All of them can be used in the “defaults” section. There is also additional information indicating which of them are available for the “lock” and “hidden” sections.

For all parameters that can be enabled/disabled, use true or 1 to activate the parameter, and false or 0 to deactivate it.

Key	Value	Purpose	Available for
Key	Value	Purpose	lock	hidden
remember_me	true	status of the “Remember me” option on the login screen	❌	❌
remember_me	false*	status of the “Remember me” option on the login screen	❌	❌
server_url	Server address	The address of TrueConf Server to which the plugin has to connect. If this field is not specified, users will have to enter the server address before authentication.	❌	❌
allow_server_change	true*	permission to connect to other TrueConf Server instances	❌	❌
allow_server_change	false	permission to connect to other TrueConf Server instances	❌	❌
guest_participants	0 = private conference*	type of access to the conference	❌	✅
guest_participants	1 = public conference	type of access to the conference	❌	✅
mode	smart_meeting*	conference mode	❌	✅
	moderated_role_based
	all_on_screen
	video_lecture
max_smart _meeting_speakers	from 4 to the value set on the server	maximum number of speakers for smart meeting mode	❌	❌
max_moderated _role_based_speakers	from 1 to the value set on the server	maximum number of speakers for moderated role-based conference mode	❌	❌
max_smart _meeting_participants	from 4 to the value set on the server	maximum number of participants for smart meeting mode	❌	❌
max_moderated _role_based_participants	from 1 to the value set on the server	maximum number of participants for moderated role-based conference mode	❌	❌
max_all_on _screen_participants	from 2 to the value set on the server	maximum number of participants for “All on screen” mode	❌	❌
default_smart _meeting_speakers	from 4 to the value set on the server	default number of speakers selected for smart meeting mode	❌	❌
default_moderated _role_based_speakers	from 1 to the value set on the server	default number of speakers selected in moderated role-based conference mode	❌	❌
pin	0*	use PIN to join a conference	✅	✅
pin	1	use PIN to join a conference	✅	✅
waiting_room	all – everyone except the owner and the moderator	send participants to the waiting room as soon as they join a conference (disabled by default)	✅	✅
	unplanned – unplanned participants
	strangers – unplanned participants from other servers
	guests
recording	0*	conference recording	✅	✅
recording	1	conference recording	✅	✅
transcription	0*	Activate conference transcription	✅	✅
transcription	1	Activate conference transcription	✅	✅
on_join_mute_mic	0*	mute participant’s microphones upon joining a conference	✅	✅
on_join_mute_mic	1	mute participant’s microphones upon joining a conference	✅	✅
on_join_mute_camera	0*	disable participants’ cameras upon joining a conference	✅	✅
on_join_mute_camera	1	disable participants’ cameras upon joining a conference	✅	✅
disable_audio_remarks	0 – the default value for a private conference	disable audio remarks	✅	✅
disable_audio_remarks	1 – the default value for a public conference	disable audio remarks	✅	✅
guest_send_messages	0	allow guests to send messages	✅	✅
guest_send_messages	1*	allow guests to send messages	✅	✅
guest_send_audio	0	allow guests to send audio	✅	✅
guest_send_audio	1*	allow guests to send audio	✅	✅
guest_send_video	0	allow guests to send video	✅	✅
guest_send_video	1*	allow guests to send video	✅	✅

* – used by default

Additionally, it is possible to configure the following parameters for the desktop version of the plugin:

Key	Value	Purpose	Available for
Key	Value	Purpose	lock	hidden
virtual_room	0	conference type – with a schedule or without it	✅	✅
virtual_room	1*	conference type – with a schedule or without it	✅	✅
additional_conf_time	from 0* to 1439	extending the duration of each conference created with the plugin. The duration will be extended relative to the time of the event to which the conference is linked (the value is specified in minutes).	❌	❌
expiration_time_updating_allowed	0	allow conference time extension	✅	✅
expiration_time_updating_allowed	1*	allow conference time extension	✅	✅
expiration_time_alert	300	notify that the conference will end in N minutes (the value is specified in seconds)	✅	✅
	600*
	900
	1800
	3600
auto_termination_enabled	0*	end the conference automatically according to the schedule	✅	✅
auto_termination_enabled	1	end the conference automatically according to the schedule	✅	✅

Example of parameter configuration

Let’s configure our settings file to enable the Remember me option so that users don’t have to enter their login and password each time.

We will set the following options by default:

Maximum number of participants for the “All on screen” mode – 9
Conference mode – “all on screen”
Mandatory use of PIN code for joining a conference
Enable conference recording
Mute participants’ microphone upon joining a conference
Turn off participant’s cameras upon joining a conference
Allow guests to send messages
Prohibit guests from sending audio
Prohibit guests from sending video
Scheduled conference
Extend the duration of each conference created with the plugin. A conference will be extended by 25 minutes relative to the time of the event to which this conference is linked.
Allow conference time extension
Notify that a conference will end in 15 minutes (900 seconds).

We will also lock the following parameters:

PIN for joining the conference
Prohibit guests from sending audio
Prohibit guests from sending video.

Finally, we will hide the parameters below:

Conference type — “internal conference”, now a user can only create public conferences
Conference mode — “video lecture”
Conference recording settings.

We will get the file config.json with the following content:

{
	"remember_me": false,
	"defaults": {
		"conference": {
			"mode": "smart_meeting",
			"pin": 0,
			"recording": 0,
			"on_join_mute_camera": 0,
			"guest_send_messages": 1,
			"guest_send_audio": 1,
			"guest_send_video": 1,
			"server_url": "server_url",
			"allow_server_change": true,
			"guest_participants": 0
		}
	},
	"lock": {
		"conference": {
			"pin": false,
			"recording": false,
			"on_join_mute_mic": false,
			"on_join_mute_camera": false,
			"disable_audio_remarks": false,
			"guest_send_messages": false,
			"guest_send_audio": false,
			"guest_send_video": false
		}
	},
	"hidden": {
		"conference": {
			"type": {
				"private": false,
				"public": false
			},
			"mode": {
				"smart_meeting": false,
				"moderated_role_based": false,
				"all_on_screen": false,
				"video_lecture": false
			},
			"pin": false,
			"recording": false,
			"on_join_mute_mic": false,
			"on_join_mute_camera": false,
			"disable_audio_remarks": false,
			"guest_send_messages": false,
			"guest_send_audio": false,
			"guest_send_video": false,
			"transcription": 0,
			"auto_termination_enabled": 0
		}
	}
}

{

"remember_me": false,

"defaults": {

"conference": {

"mode": "smart_meeting",

"pin": 0,

"recording": 0,

"on_join_mute_camera": 0,

"guest_send_messages": 1,

"guest_send_audio": 1,

"guest_send_video": 1,

"server_url": "server_url",

"allow_server_change": true,

"guest_participants": 0

}

"lock": {

"conference": {

"pin": false,

"recording": false,

"on_join_mute_mic": false,

"on_join_mute_camera": false,

"disable_audio_remarks": false,

"guest_send_messages": false,

"guest_send_audio": false,

"guest_send_video": false

}

"hidden": {

"conference": {

"type": {

"private": false,

"public": false

"mode": {

"smart_meeting": false,

"moderated_role_based": false,

"all_on_screen": false,

"video_lecture": false

"pin": false,

"recording": false,

"on_join_mute_mic": false,

"on_join_mute_camera": false,

"disable_audio_remarks": false,

"guest_send_messages": false,

"guest_send_audio": false,

"guest_send_video": false,

"transcription": 0,

"auto_termination_enabled": 0

}

If you have any issues with the plugin after changing the parameters, you can download the standard config.json file by following this link.
